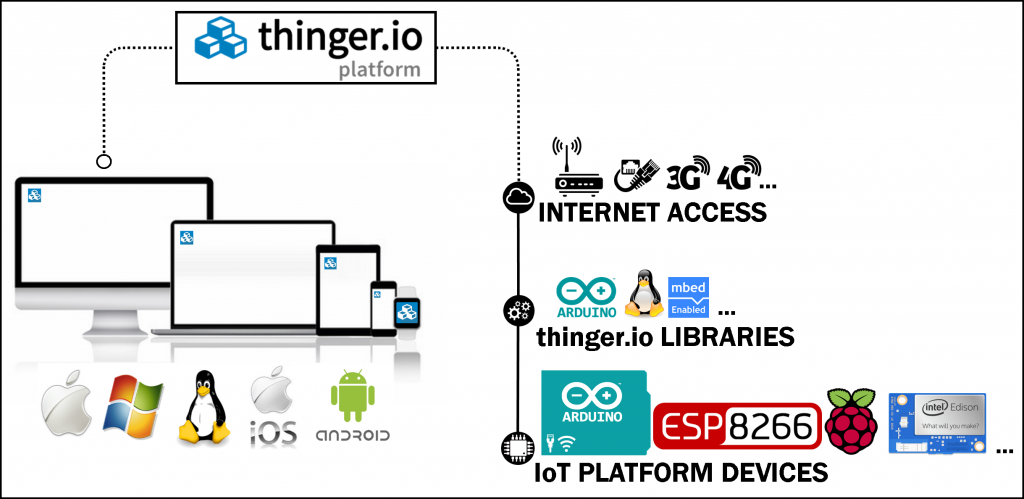

• Thinger.io is a IoT platform easy to use, and easy to understand, with a clean desing to have awesome experiences to the developers.
• Makers can register for free accounts to start building their IoT projects in minutes, just using its cloud infrastructure.
• Any source IoT platform device can be connected. Arduino, ESP8266, Raspberry Pi, Intel Edison… that’s not a problem.
• Thinger.io platform senses and acts over devices in real-time. Its technology minimize data bandwidth, processing power, code size and increases the server scalability
• Its data buckets will easily store any kind of information, and its dashboards can just as easily display the information stored or received in real time.

This example shows the simplest thing you can do with thinger.io to see physical output: it blinks one LED with any device connected to the Internet.

We are going to use Arduino IDE (the last version is on www.arduino.cc) and a NodeMCU development board.

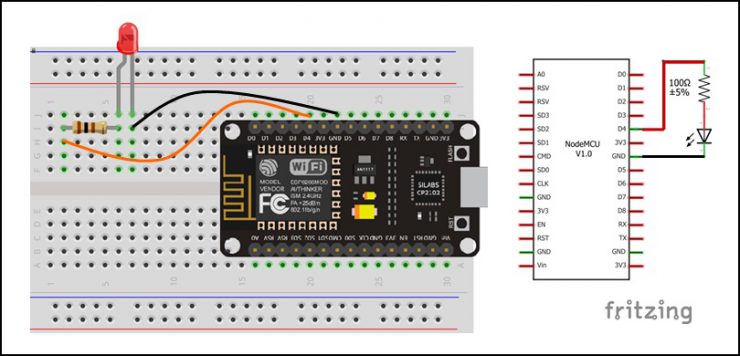

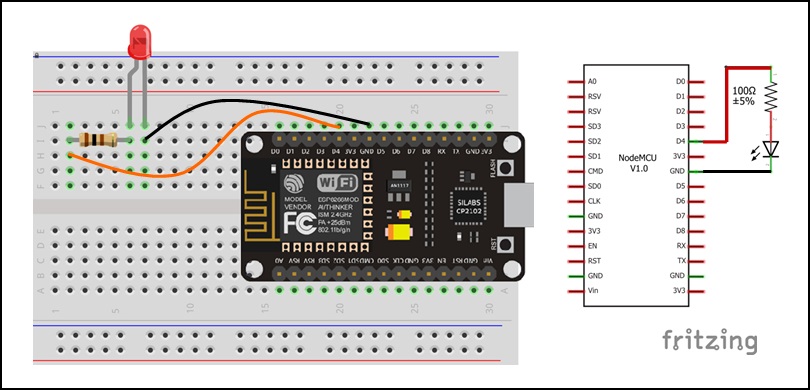

The hardware required to build the circuit is the following:

• NodeMCU development board.
• Led.
• Resistor 100Ω / 0,25W.
• Protoboard.
• Protoboard wires.

ACCESS TO THE PLATFORM

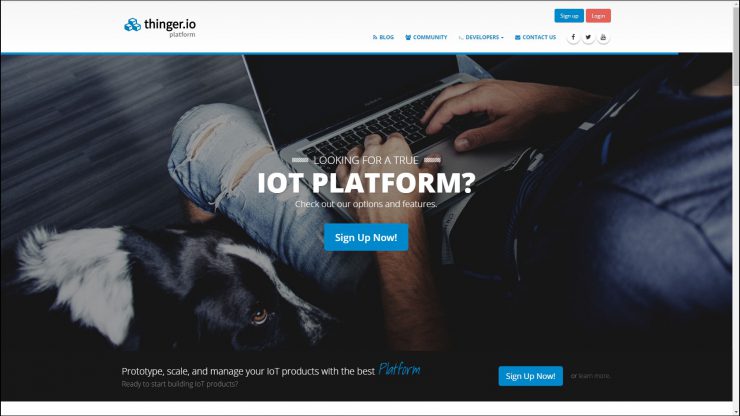

The very first step to work with  thinger.io is to sign up in the platform, giving an user name, email address and password. You will receive a message to confirm the email address and once it´s done you can access and start using it.

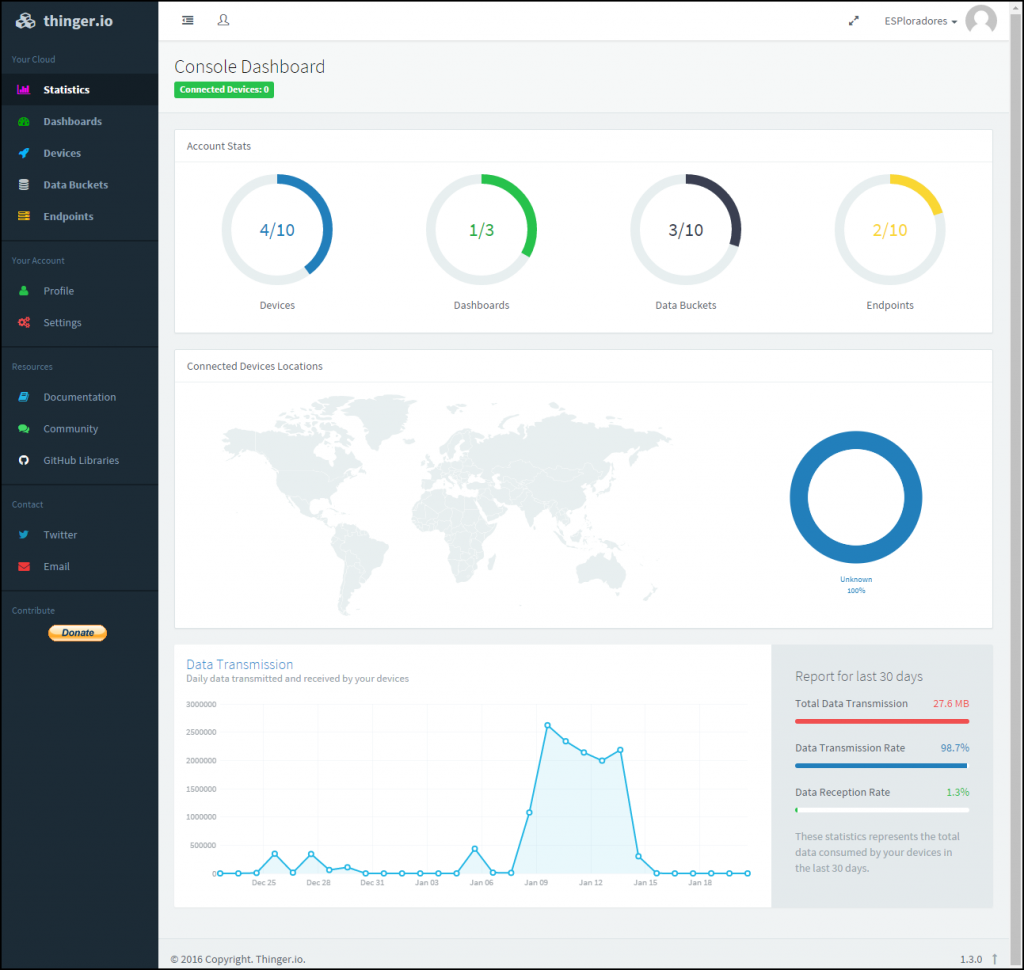

After you have signed in, you have access to the console dashboard, in which graphically, you can see the  account stats (with the numer of devices, dashboads data buckets and endpoints used), the location of the connected devices and a the data transmission made by  the devices (data transmitted and received).

CONFIGURATION OF A DEVICE

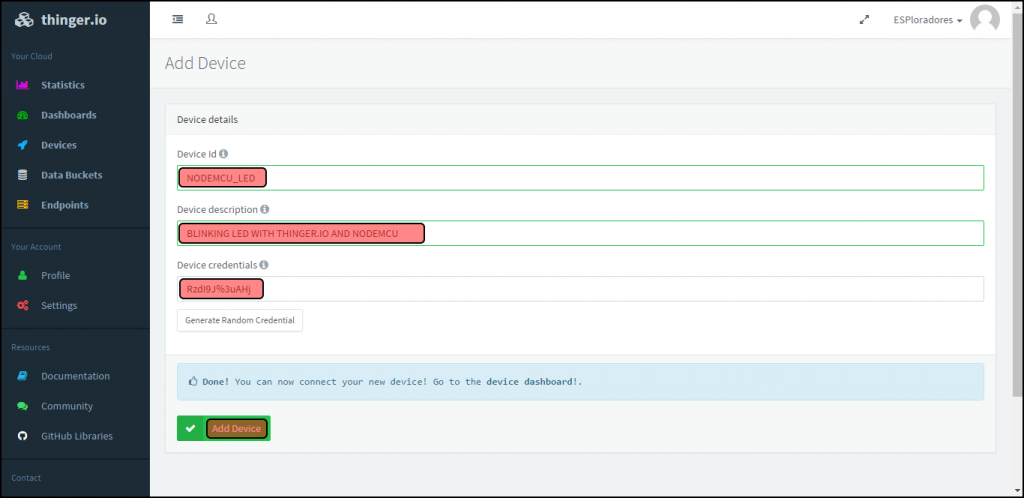

To configure the connection to a device using thinger.io is quite easy. Select Devices > Add Device and fill the three requested fields:

• Device Id: this is the name you want to assign to the IoT board you want to control or actuate. Spaces aren’t allowed in the Devide Id.
• Device description: a brief description about the use of the device.
• Device credentials: a key to establish and keep the connection between thinger.io and the device secure.

If you’re following this  projetc  it´s time to fill the three fiels:

It´s done. If you click Statistics you can go back to the console dashboard, and you will see that the device is added.

INSTALLATION OF THE thinger.io LIBRARY

To install thinger.io library into your Arduino IDE you can use the Library Manager. Open the IDE and click to the «Sketch» menu and then Include Library > Manage Libraries.

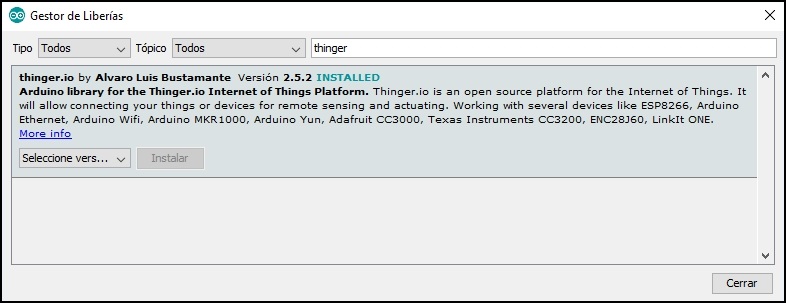

Then the library manager will open. Look for the library called: thinger.io by Alvaro Luis Bustamante and click on install and wait for the IDE to install the new library. Once it has finished, an Installed tag should appear next to the Bridge library. You can close the library manager.

Now you can use the thinger.io functios in the Arduino IDE!!!

UPLOAD OF THE SKETCH

This is the sketch that we are going to use:

/*
 Hello World Thinger.io -Blink-

 This code is under public domain.
 Dani No www.esploradores.com
 */

#include <ESP8266WiFi.h>       //ESP8266 WiFi connection library
#include <ThingerESP8266.h>    //THINGER.IO library

// Thinger.io connection parameters
#define user "ESPloradores"
#define device_Id "NODEMCU_LED"
#define device_credentials "Rzdl9J%3uAHj"
ThingerESP8266 thing(user, device_Id, device_credentials);

// WiFi connection parameters
const char WiFi_ssid[]="********";      //WiFi SSID
const char WiFi_password[]="********";  //WiFi password
// Global variable
int led = 2;       // GPIO02 - D4

void setup() {

 // Initialization of the WiFi connection with THINGER.IO
   thing.add_wifi(WiFi_ssid, WiFi_password);

 // Initialization of the LED
   pinMode(led, OUTPUT);

 // Resource for changing LED status from THINGER.IO
  thing["LED"] << [](pson& in){
    if(in.is_empty()){
      in = (bool) digitalRead(led);
      }
    else{
      digitalWrite(led, in ? HIGH : LOW);
      }
    };
  }

void loop() {
  thing.handle();
  }

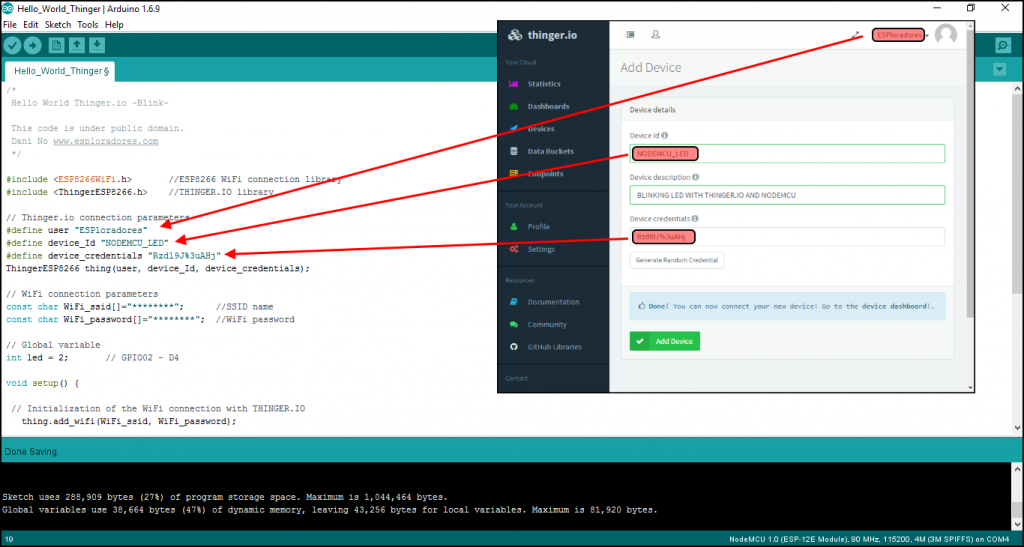

It´s neccesary to change the «Thinger.io connection parammeters« and make them match, with the data used when we made the device in thinger.io.

It’s s also necessary to change the WiFi SSID and WiFi password and make them match with your own WiFi network.

Once the changes have been done, you can upload the sketch to the NodeMCU.

A QUICK LOOK AT THE CODE…

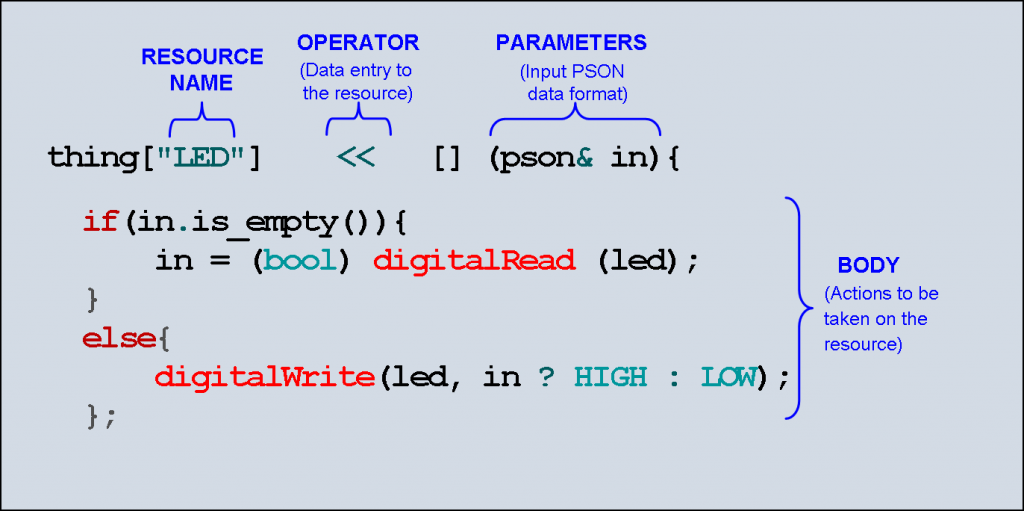

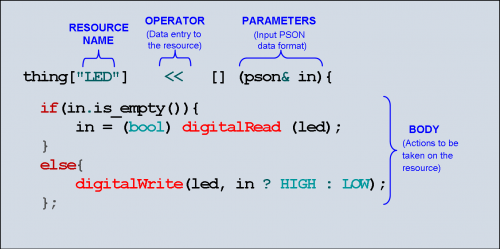

The  on / off function has the following structure:

• RESOURCE NAME: is the name of one variable used to group communication data between the device board and and the thinger.io platform. This name will allow us to identify or select the data to use, in the dashboards, data buckets or endpoints.

• OPERATORS Y PARAMETES:  indicate the direction in which the information circulates between the resource and the platform, as well as its form of codification. In our case, the data are input to the resource from the platform and come encoded in JSON format. JSON format is a variable type that can contain booleans, numbers, floats, strings, or even structured information like in a JSON document.
• BODY: is the place to program the way to act on one or more devices connected to the inputs or outputs of the device board, from the data supplied from the platform (and if applicable from the device board itself).

TURNING ON AND OFF THE LED FROM thinger.io

 To turn on and off the led from thinger.io, open the platform and click Devices and then your device -NODEMCU_LED-.

Then the device will open.

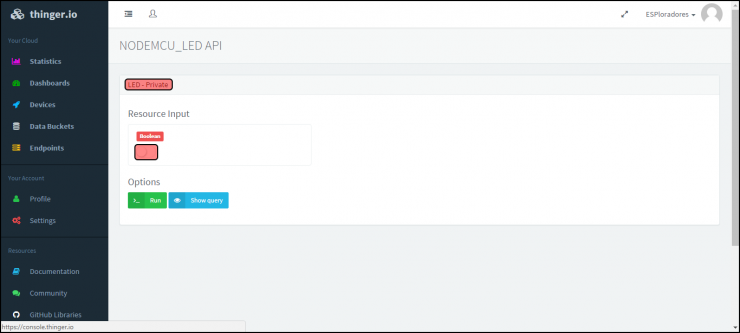

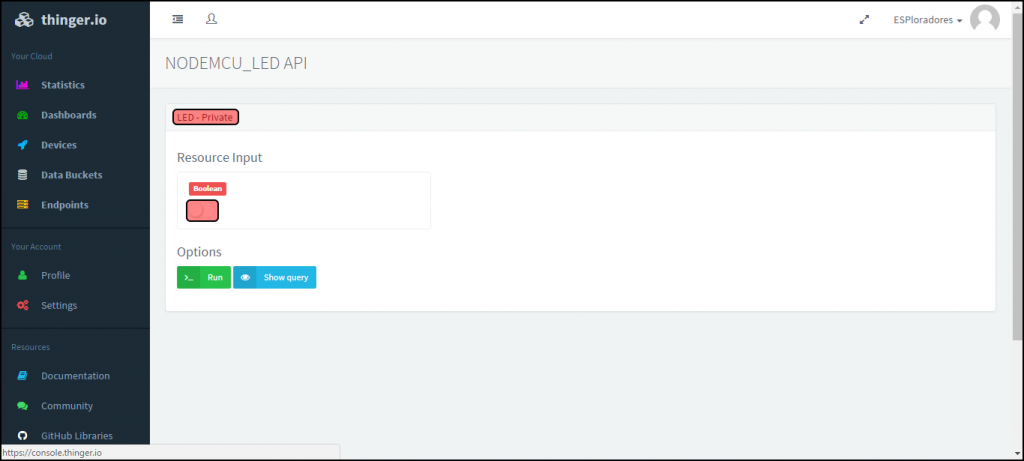

Then click on View API and LED-Private. Once it´s done you can see the switch to turn the LED on and off.

TURNING ON AND OFF THE LED FROM THE thinger.io APP

 The first step is to install the APP on your tablet, smartphone… you can find it in the Play Store for Android or App Store for Apple.

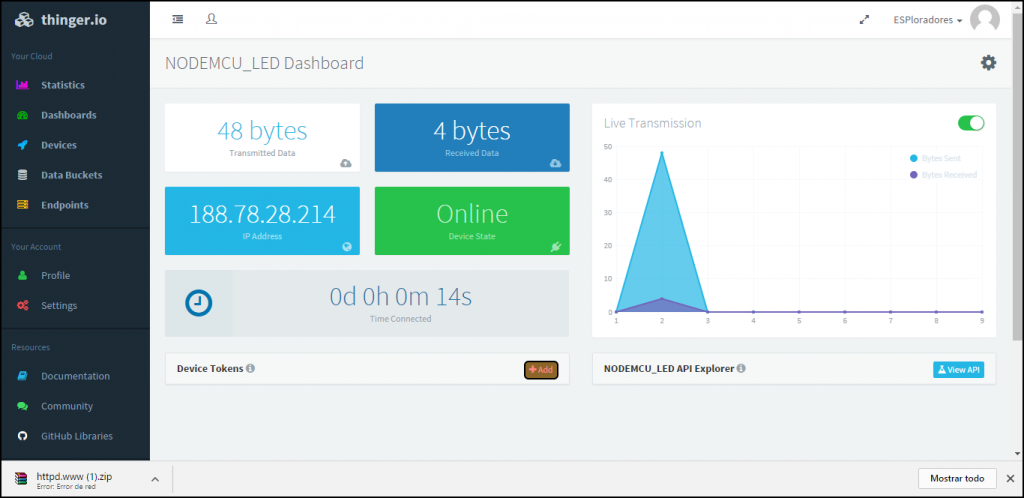

Open the -NODEMCU_LED- device and click Add into the Device Tokens.

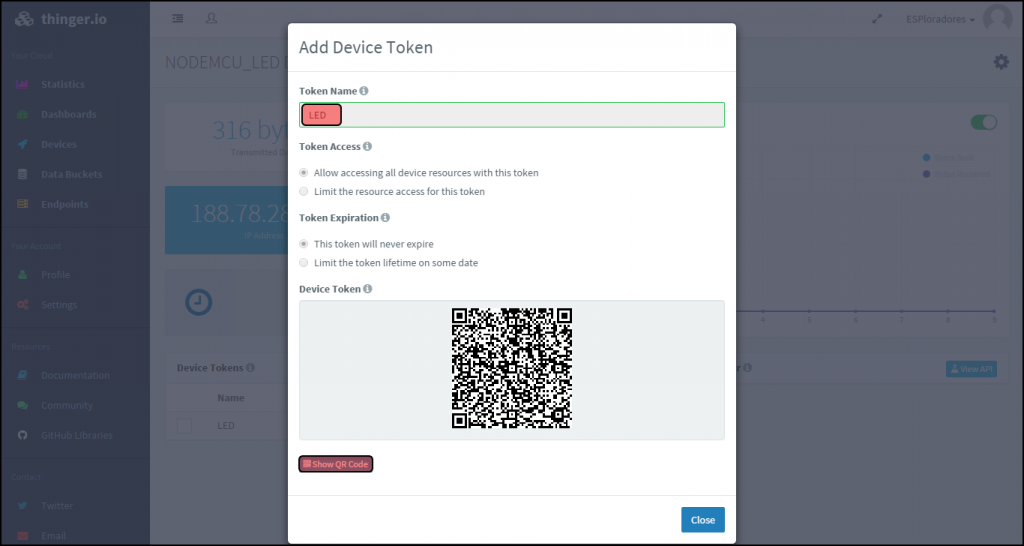

Write a representative name about the use of the connection in the Token name field, and click Ok > Show QR Code.

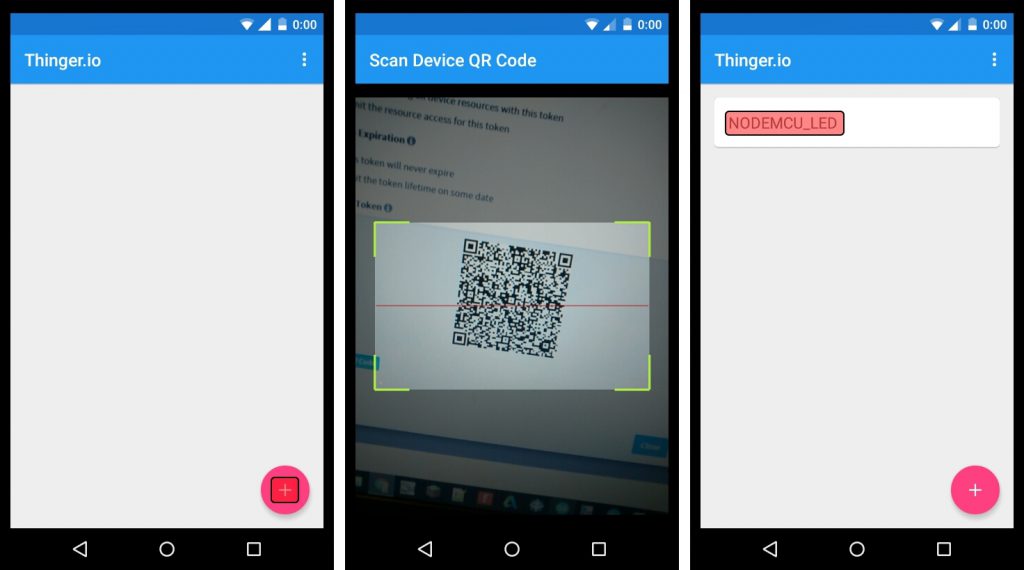

Open the APP and click «+«. Then scan the Device QR Code.

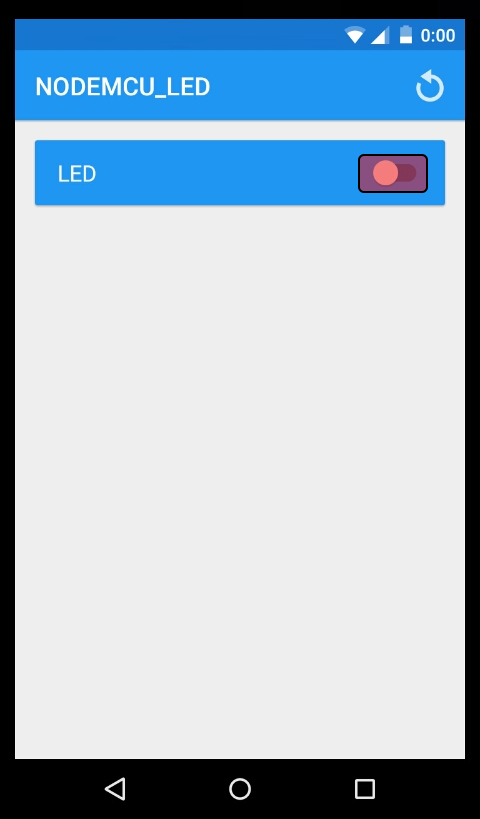

Click in the device and you will see the switch to turn the LED on and off.

Dani No    www.esploradores.com
